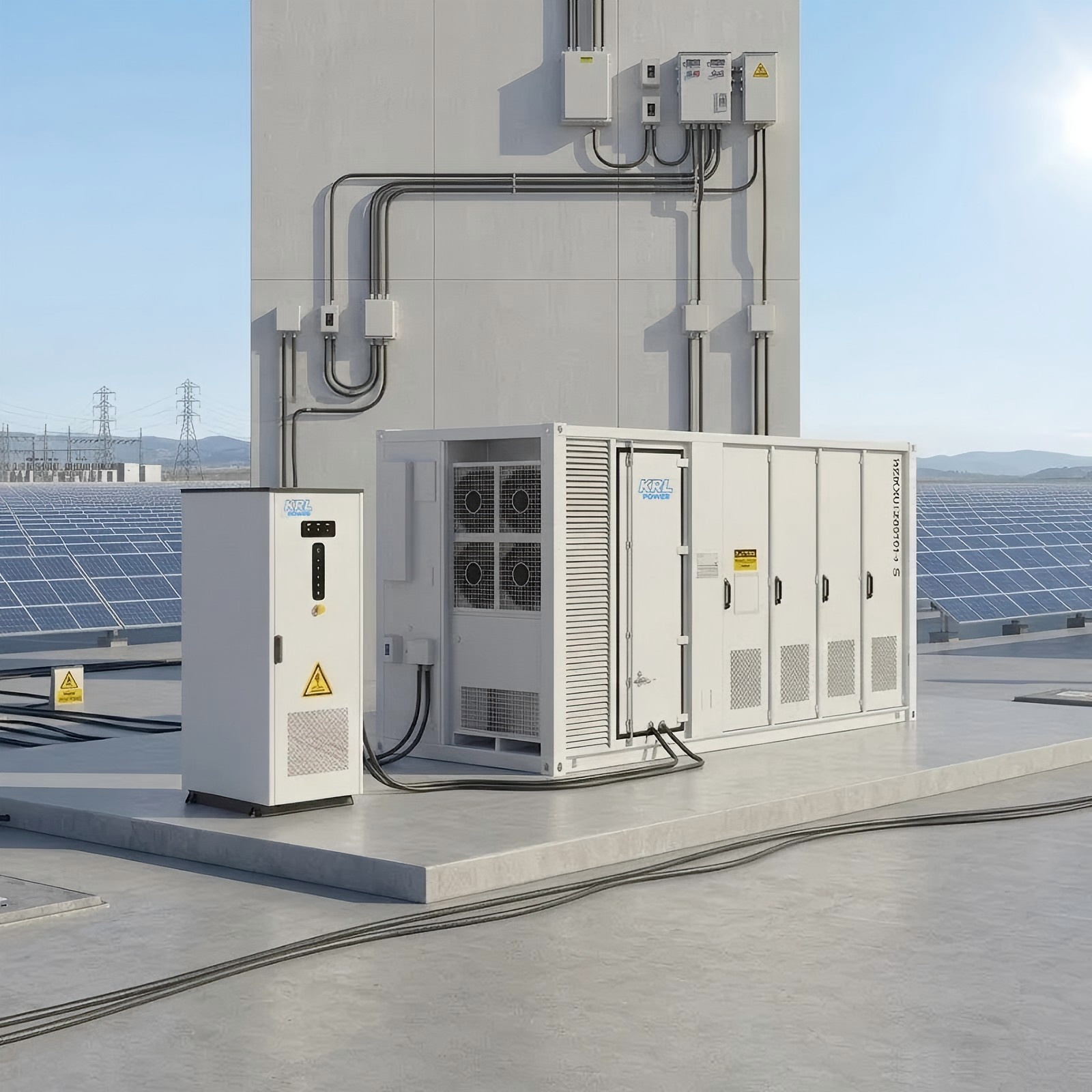

KRL-B2M6L-1-2mW-2-6mWh
The KRL-B2M6L 2–6MWh Container BESS is a utility-scale battery energy storage system designed for solar farms, microgrids, and large commercial energy storage projects. Designed for utility-scale solar farms, mega-factories, and island-wide micro-grids, this titan utilizes advanced 314Ah high-density cells and elite liquid-cooling thermal management to maximize ROI. Featuring robust grid-forming capabilities, seamless UPS-grade power transition, and extreme weather resilience, the B2M6L container reflects KRL’s ultimate engineering prowess. It delivers bankable, gigawatt-level energy stability and zero-downtime reliability for international project developers.
| 1.5MWh+750kW | 2MWh+1MW | |
| Model | KRL-B1M5L-750H3S-720M6-HX1 | KRL-B2ML-1MH3S-960M8-HX1 |
| Battery | ||
| Battery Type | LiFePO4 Battery | |
| Rated Energy | 1.5MWh | 2MWh |
| Nominal Voltage | 832V | |
| Rated Capacity | 1884Ah | 2512Ah |
| PV | ||
| Max. Power | 720kW | 960kW |
| Max. PV Voltage | 950Vdc | |
| MPPT Voltage Range | 250~850Vdc | |
| Max. PV Input Current | 200A+200A+200A+200A+200A+200A | 200A+200A+200A+200A +200A+200A+200A+200A |
| MPPT Channels | 6 | 8 |
| AC (On-grid) | ||
| Rated Power | 750kW | 1000kW |
| AC Voltage | 400Vac/230Vac(L1/L2/L3/N/PE) | |
| Rated Frequency | 50Hz/60Hz | |
| Max. AC Current | 1130A | 1500A |
| AC (Off-grid) | ||
| Rated Power | 750kW | 1000kW |
| AC Voltage | 400Vac/230Vac(L1/L2/L3/N/PE) | |
| Rated Frequency | 50Hz/60Hz | |
| Max. AC Current | 1130A | 1500A |
| Switching Time | <10ms | |
| General Parameter | ||
| Diesel Generator Port | Yes | |
| Communication Type | RS485/WiFi | |
| IP Grade | IP65(Battery) | |
| Fire Protection System | Yes | |
| Operating Temperature | -10℃ ~ 55℃ | |
| Humidity Range | 5%~95% | |
| Altitude | <2000m | |
| Battery Cooling Method | Liquid cooling | |
| PCS Cooling Method | Intelligent cooling | |
| Size(mm) | 6058*2438*2896mm | 6058*2438*2896mm |
| Weight(kg) | 15000kg(about) | 19500kg(about) |
KRL-B2M6L Applications & Solutions

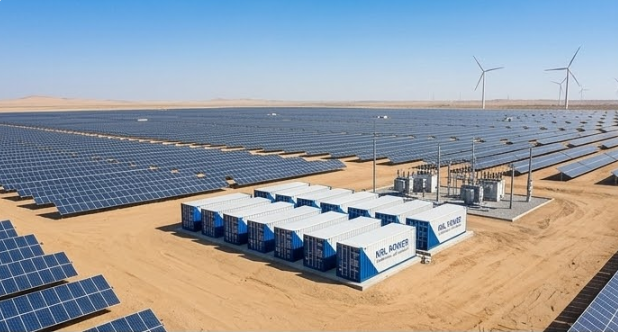

Utility-Scale Solar & Wind Farms
Perfectly paired with large-scale solar farms to smooth output curves and prevent solar curtailment. Our elite liquid-cooling thermal management ensures consistent 98.5% system efficiency, delivering bankable energy stability to the grid.

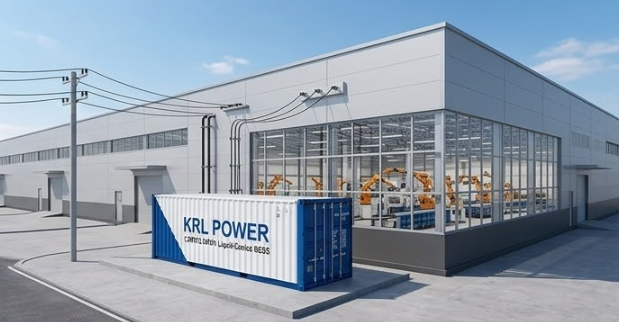

Mega-Factories & Heavy Industry
Designed for high-energy-consuming manufacturing facilities. Slash peak demand charges while relying on our seamless 10ms UPS-grade power transition to keep critical production lines running during unexpected grid failures.

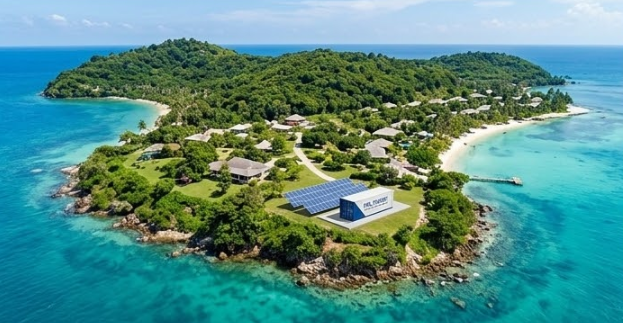

Island-Wide & Remote Micro-grids
Engineered for extreme weather resilience, the 20ft containerized B2M6L features robust grid-forming capabilities. It acts as the heartbeat of island and remote mountainous micro-grids, replacing noisy diesel generators completely.

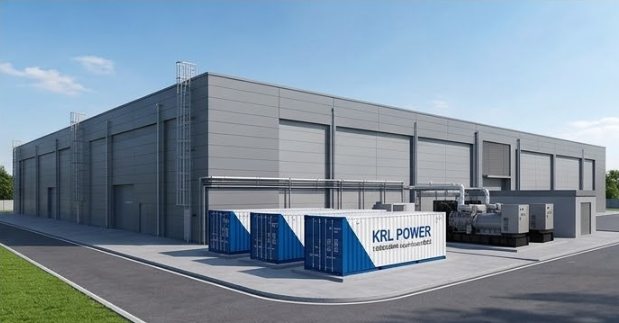

Critical Infrastructure & Emergency Backup
When failure is not an option. Provides mega-watt level disaster emergency power supply for data centers, hospitals, and regional telecom hubs, effortlessly deployed anywhere in the world thanks to standard maritime dimensions.
Engineered for utility-scale ambition and gigawatt-level demands, the monumental KRL-B2M6L 1.2MW/2.6MWh Liquid-Cooled Energy Storage Container is the ultimate grid-forming powerhouse. Driven by our proprietary liquid-cooling thermal management, advanced 314Ah high-density cells, and an automated multi-level fire suppression system, it guarantees uncompromising safety for the world’s most critical infrastructure. Featuring robust grid-forming capabilities to harness massive renewable energy and seamless sub-10ms zero-downtime switchover, it comprehensively protects mega-factories and island-wide micro-grids. Pre-assembled and rigorously tested in our National High-Tech Enterprise source factory, this highly integrated standard 20ft maritime container eliminates complex onsite engineering, delivering true plug-and-play, bankable energy independence tailored for your international mega-projects.
