KRL-B100-50kW-100kWh

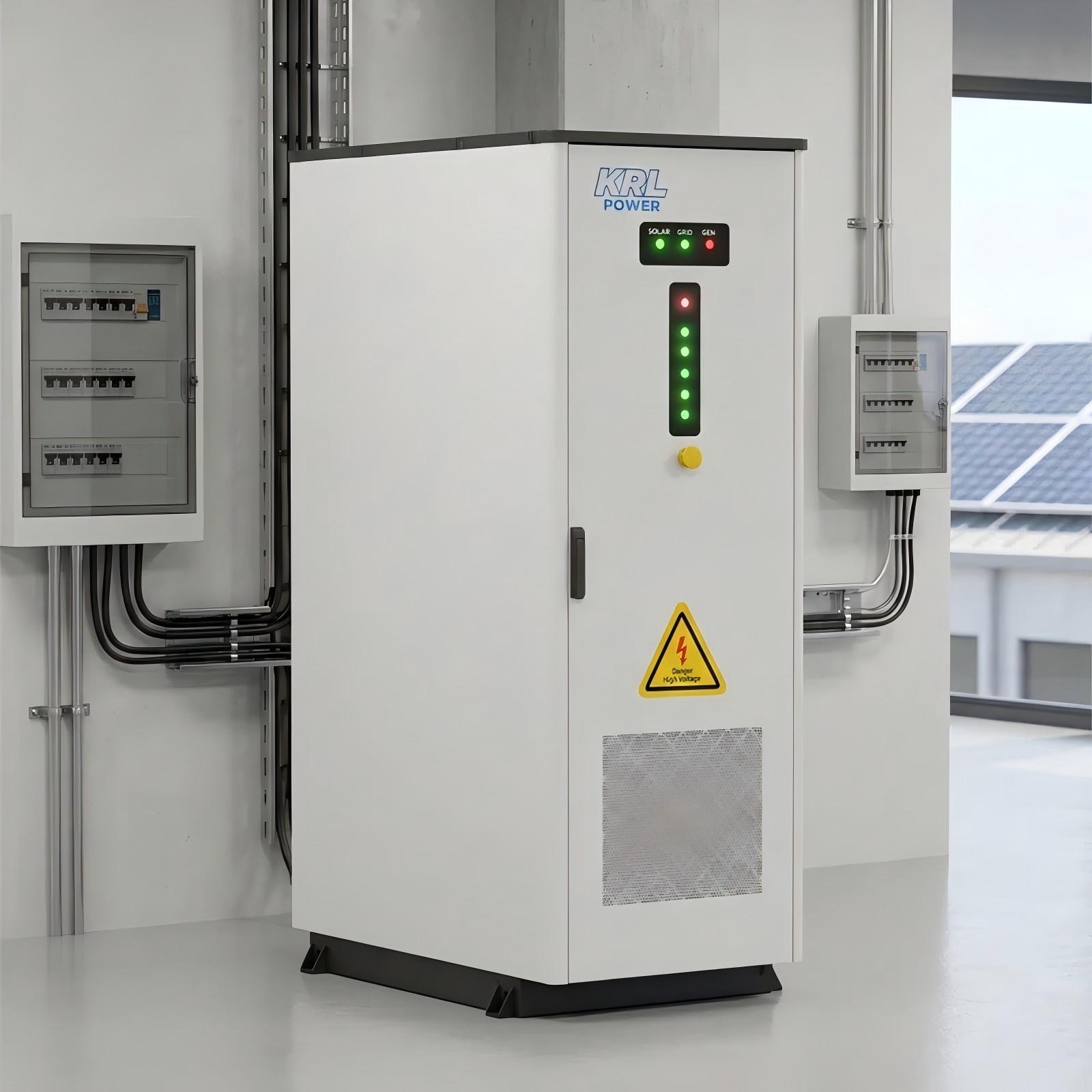

The KRL-B100 is a highly efficient 50kW/100kWh All-in-One Solar-Diesel BESS Cabinet, engineered for medium-sized C&I applications. Setting a new industry benchmark, it features an oversized 100kW MPPT solar input, enabling ultra-fast charging to maximize solar utilization in sun-rich regions. Integrated with premium LiFePO4 batteries, BMS, and EMS within a rugged plug-and-play enclosure, it delivers seamless UPS-grade power switching in under 10 milliseconds. Perfect for gas stations, resorts, and farms, this system completely eradicates power outages and eliminates reliance on noisy diesel generators.
| Model | KRL-B100-50H3S-100M4-HX2 |
| Battery | |
| Battery Type | LiFePO4 Battery |
| Rated Energy | 100kWh |
| PV | |
| Max. Power | 100kW |
| Max. PV Voltage | 1000Vdc |
| MPPT Voltage Range | 200~900Vdc |
| Max. PV Input Current | 40A+40A+40A+40A |
| MPPT Channels | 4 |
| AC (On-grid) | |
| Rated Power | 50kW |
| AC Voltage | 400Vac/230Vac(L1/L2/L3/N/PE) |
| Rated Frequency | 50Hz/60Hz |
| Max. AC Current | 75A |
| AC (Off-grid) | |
| Rated Power | 50kW |
| AC Voltage | 400Vac/230Vac(L1/L2/L3/N/PE) |
| Rated Frequency | 50Hz/60Hz |
| Max. AC Current | 75A |
| Switching Time | <10ms |
| General Parameter | |
| Diesel Generator Port | Yes |
| Communication Type | RS485/WiFi |
| IP Grade | IP54 |
| Fire Protection System | Yes |
| Operating Temperature | -10℃~50℃ |
| Humidity Range | 5%~95% |
| Altitude | <3000m |
| Battery Cooling Method | Air-Conditioner |
| PCS Cooling Method | Intelligent cooling |
| Size(mm) | 740*1348*2350mm |
| Weight(kg) | 1150kg(about) |
KRL-B100 Applications & Solutions
Mountainous areas and islands
Gas station
Disaster emergency power supply
Factory power supply
Supermarket Power Supply
PV power generation
Engineered for versatility and ultimate reliability, the KRL-B100 50kW/100kWh All-in-One BESS is designed to conquer diverse global power challenges. Whether establishing independent micro-grids with its oversized 100kW MPPT solar input for remote mountainous areas and islands, or maximizing the efficiency of large-scale PV power generation, our solution delivers consistent, clean energy. For the commercial and industrial sectors, we guarantee uninterrupted factory power supply and stabilize critical retail operations, including supermarkets and gas stations, completely eliminating the need for noisy diesel generators. In times of crisis or grid failure, our robust cabinets serve as a dependable disaster emergency power supply with sub-10ms UPS-grade switching. Manufactured directly by a recognized National High-Tech Enterprise source factory with decades of deep industry expertise, each highly integrated energy solution ensures seamless installation, exceptional safety, and zero-downtime performance tailored to your specific project needs.
