KRL-B241-125kW-241kWh

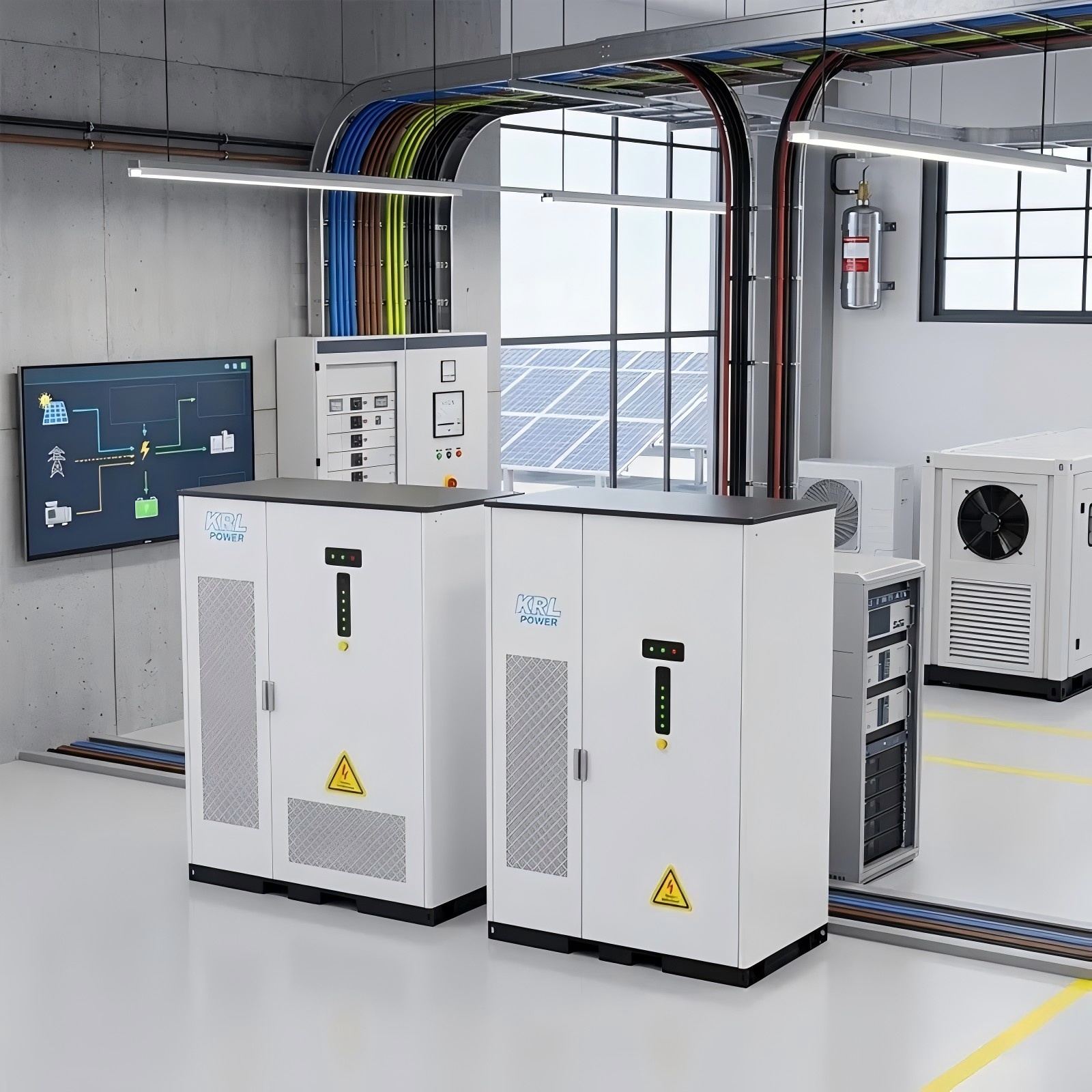

The KRL-B241 125kW/241kWh Commercial BESS is an all-in-one battery energy storage cabinet designed for factories, commercial buildings and solar hybrid energy systems. integrating LiFePO4 batteries, PCS, BMS and EMS in one cabinet. It highly integrates high-quality LiFePO4 batteries, BMS, PCS, EMS, and a powerful 120kW MPPT controller. Built for extreme grid conditions, it features seamless <10ms UPS-grade switching, ensuring absolute zero downtime for critical industrial operations. Equipped with a built-in industrial air-conditioner, advanced fire protection, and an IP54-rated enclosure, it operates flawlessly in harsh climates. Supporting up to 10 units in parallel and seamless diesel generator integration, it is the ultimate plug-and-play energy solution for factories, islands, and remote areas seeking absolute power reliability.
| Model | KRL-B241-125H3S-120M1-HX1 |
| Battery | |
| Battery Type | LiFePO4 Battery |
| Rated Energy | 241kWh |
| PV | |
| Max. Power | 120kW |
| Max. PV Voltage | 950Vdc |
| MPPT Voltage Range | 250~850Vdc |
| Max. PV Input Current | 200A |
| MPPT Channels | 1 or 4 |
| AC (On-grid) | |
| Rated Power | 125kW |
| AC Voltage | 400Vac/230Vac(L1/L2/L3/N/PE) |
| Rated Frequency | 50Hz/60Hz |
| Max. AC Current | 180A |
| AC (Off-grid) | |
| Rated Power | 125kW |
| AC Voltage | 400Vac/230Vac(L1/L2/L3/N/PE) |
| Rated Frequency | 50Hz/60Hz |
| Max. AC Current | 180A |
| Switching Time | <10ms |
| Parallel Number | 10 |
| General Parameter | |
| Diesel Generator Port | Yes |
| Communication Type | RS485/WiFi |
| IP Grade | IP54 |
| Fire Protection System | Yes |
| Operating Temperature | -10℃~55℃ |
| Humidity Range | 5%~95% |
| Altitude | <2000m |
| Battery Cooling Method | Air-Conditioner |
| PCS Cooling Method | Intelligent cooling |
| Size(mm) | 1190*1170*2260mm |
| Weight(kg) | 2520kg(about) |
125kW 241kWh BESS Applications & Solutions

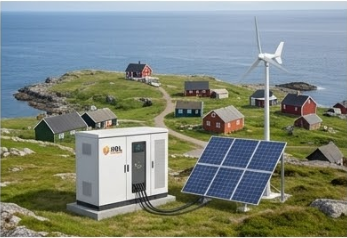

Mountainous areas and islands

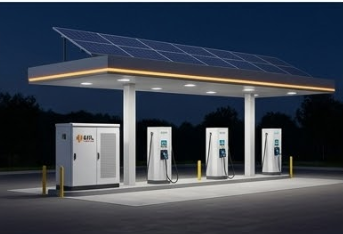

Gas station

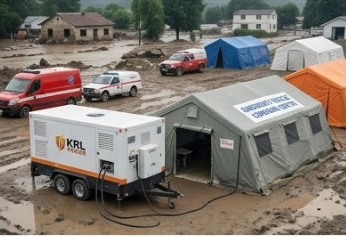

Disaster emergency power supply

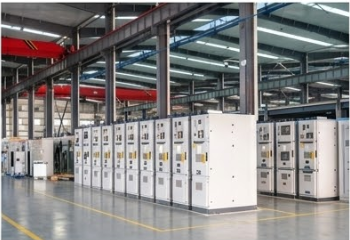

Factory power supply

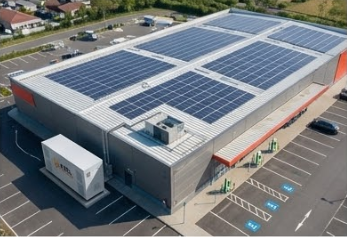

Supermarket Power Supply

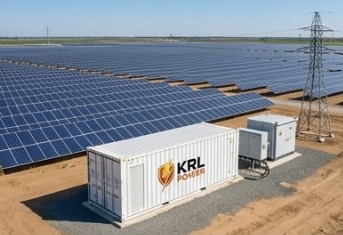

PV power generation
Engineered for massive scalability and ultimate reliability, the KRL-B241 125kW/241kWh All-in-One BESS is designed to conquer the most demanding global power challenges. Whether establishing independent micro-grids with its powerful 120kW MPPT solar input for remote mountainous areas and islands, or maximizing the efficiency of large-scale PV power generation, our solution delivers consistent, clean energy. For the commercial and industrial sectors, we guarantee uninterrupted factory power supply and stabilize critical retail operations, including supermarkets and gas stations, completely eliminating the need for noisy diesel generators. In times of crisis or grid failure, our robust, HVAC-cooled IP54 cabinets serve as a dependable disaster emergency power supply with sub-10ms UPS-grade switching. Uniquely capable of supporting up to 10 units in parallel for mega-projects, and manufactured directly by a recognized National High-Tech Enterprise source factory with decades of deep industry expertise, each highly integrated energy solution ensures seamless plug-and-play installation, exceptional safety, and zero-downtime performance tailored to your specific project needs.
