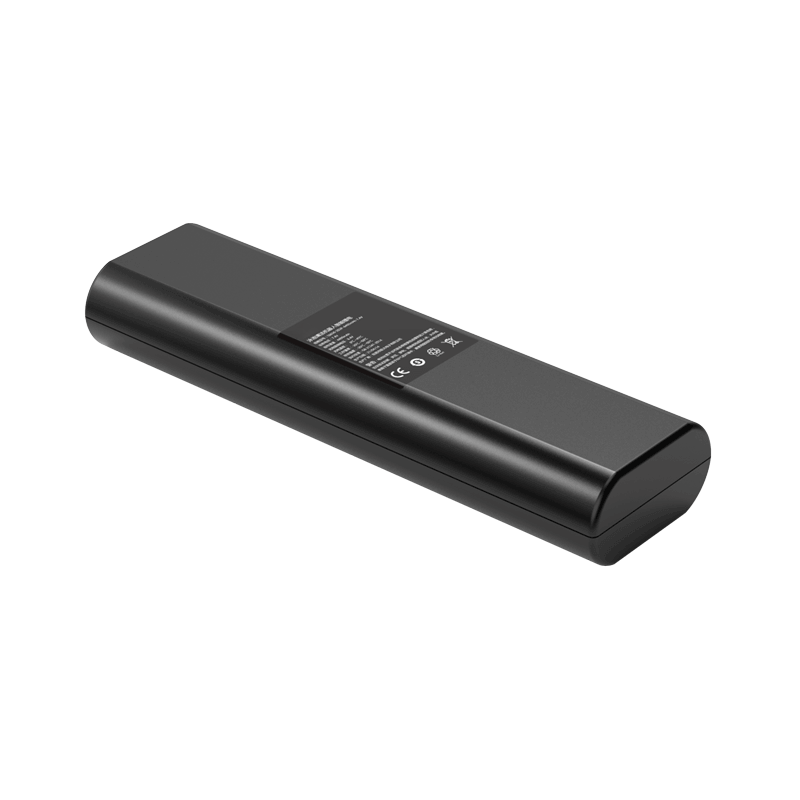

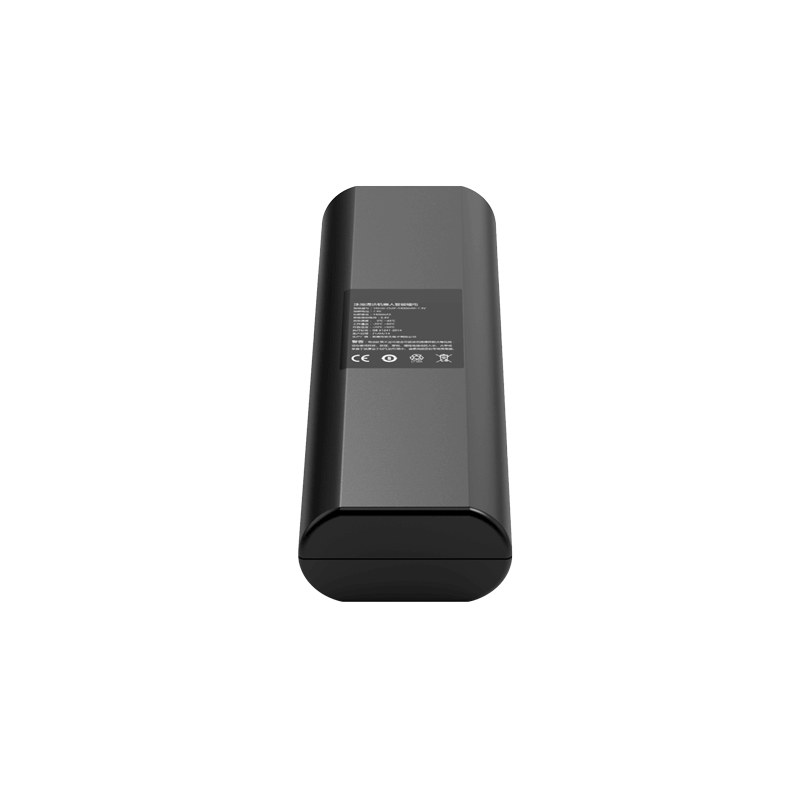

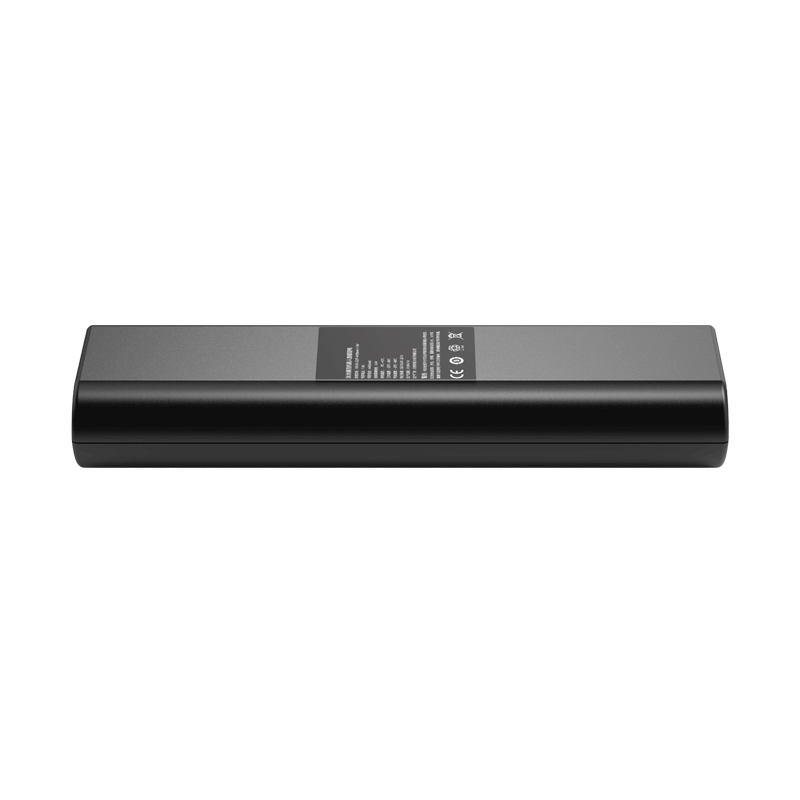

7.4V 4400mAh Swimming Pool Cleaning Robot Intelligent Lithium Battery

The 7.4V 4400mAh pool cleaning robot battery is designed to provide stable and reliable power for intelligent swimming pool cleaning robots. Built with high-quality lithium cells, the battery ensures long operating time, high efficiency and excellent cycle life.

Li-ion batteries suitable for cleaning robots

Product Number: 01DQ0131-01
Rated voltage: 7.4V
Rated capacity: 4400mAh
Battery size: 135*43*19.5mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Application field: Robotics

Applications of Pool Cleaning Robot Battery

This lithium battery pack is widely used in intelligent cleaning equipment.

Typical applications include:

• Swimming pool cleaning robots
• Automatic pool vacuum robots
• Intelligent underwater cleaning devices
• Small robotic cleaning systems
• Portable robotic equipment

Key Features

• 7.4V high-performance lithium battery pack
• 4400mAh capacity for long operating time
• Lightweight and compact battery design
• Stable discharge performance
• Built-in battery management system (BMS)
• Long cycle life and high safety

Advantages of Lithium Batteries for Cleaning Robots

Lithium battery packs are widely used in modern robotic cleaning equipment due to their high energy density, lightweight structure and long cycle life. Compared with traditional batteries, lithium batteries provide longer working time and higher efficiency. The 7.4V 4400mAh lithium battery pack is specially designed for pool cleaning robots and ensures stable performance in underwater and humid environments.

Product Number: 01DQ0131-01 Cell model: 18650 – 2200mAh – 3.7V Battery specification: 18650 – 2S2P – 4400mAh – 7.4V Rated voltage: 7.4V Rated capacity: 4400mAh Charging voltage: 8.4V Charging current: ≤ 2.2A Discharge current: ≤ 4.4A Discharge cut-off voltage: 6.0V Internal resistance of the finished product: ≤ 120 mΩ Battery weight: 210g Product dimensions: 135*43*19.5mm Charging temperature: 0 – 45℃ Discharge temperature: -20 to 60 degrees Celsius Storage temperature: -20 to 35 degrees Celsius Battery packaging: Blue PVC packaging Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection, ESD protection, etc. Application fields: Cleaning robots, sweeping robots, mapping robots and other robot domains Product features Blue PVC heat shrink film packaging, simple and reliable, easy to install Connector plug end: Uses JST plug output method, enhancing the conductivity reliability of the plug. Data communication management: Utilize TI-SMBus software to manage chips, achieve precise data transmission via SMBus communication, and ensure accurate temperature control. This method minimizes potential safety hazards to the greatest extent. The battery pack is safe, has excellent discharge performance and a long cycle life. The battery pack has a long cycle life, which is in line with the value concepts of low carbon, energy conservation and environmental protection.
