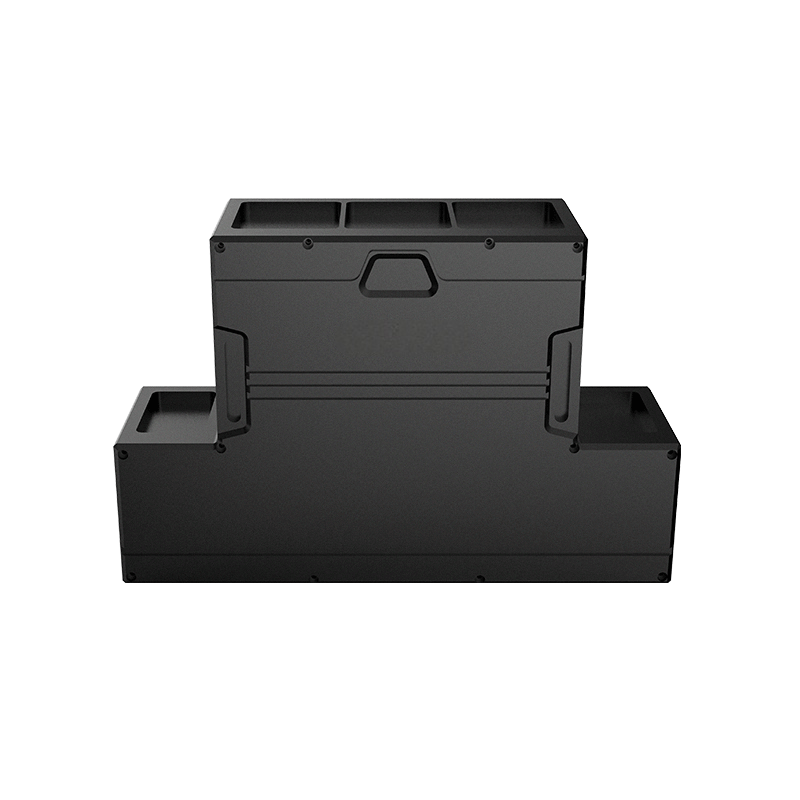

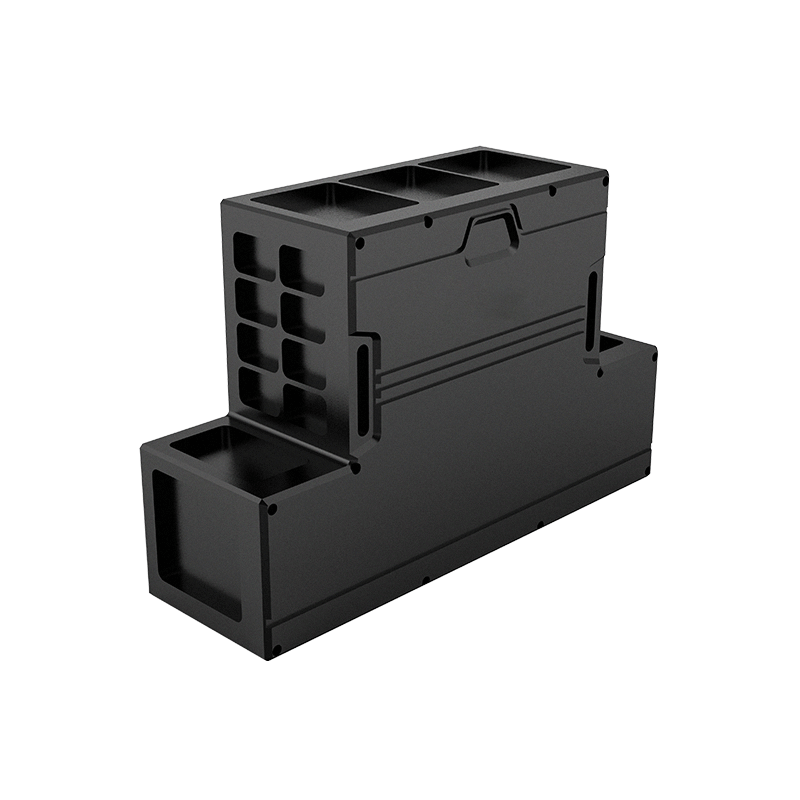

48V 20000mAh Lithium-ion Battery (18650)
The 48V 20Ah lithium ion battery pack is designed for industrial robots, automated equipment and intelligent robotic systems requiring stable high-capacity power.
For Special Robot Energy Storage, with CAN Communication
- Product Number: 32AQ028-01
- Nominal voltage: 48.0V
- Nominal capacity: 20,000 mah
- Battery size: 214*180*149mm (Max)
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 55 ℃
- Application field: Industrial robots
Applications of 48V Lithium Battery Pack
• Industrial robots
• Automated manufacturing equipment
• AGV robots and mobile robots
• Robotics research equipment
• Automation control systems
Key Features
• High energy density 18650 lithium battery cells
• Stable 48V 20Ah power output
• Built-in battery management system (BMS)
• CAN communication for monitoring and control
• Long cycle life and reliable performance
Advantages of Lithium Batteries for Industrial Robots
Lithium battery packs are widely used in industrial robots due to their high energy density, long cycle life and stable discharge performance. Compared with traditional batteries, lithium batteries provide lighter weight and longer operating time, making them ideal for automated manufacturing equipment, AGV robots and intelligent robotic systems.
- Product Number: 32AQ028-01
- Battery cell model: 18650/3500mAh/3.6V
- Battery specification: 18650-13S6P/48V/20Ah
- Nominal voltage: 48V
- Nominal capacity: 20Ah
- Charging voltage: 54.6V
- Charging current: ≤10A
- Discharge current: 20A
- Instantaneous discharge current: 40A
- Discharge cut-off voltage: 32.5V
- Finished product internal resistance: ≤200mΩ
- Battery weight: 4Kg
- Product size: 214*180*149mm (Max)
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 55 ℃
- Storage temperature: -20 to 45 ℃
- Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, equalization, with Can communication, etc
- Application field: Industrial robots
