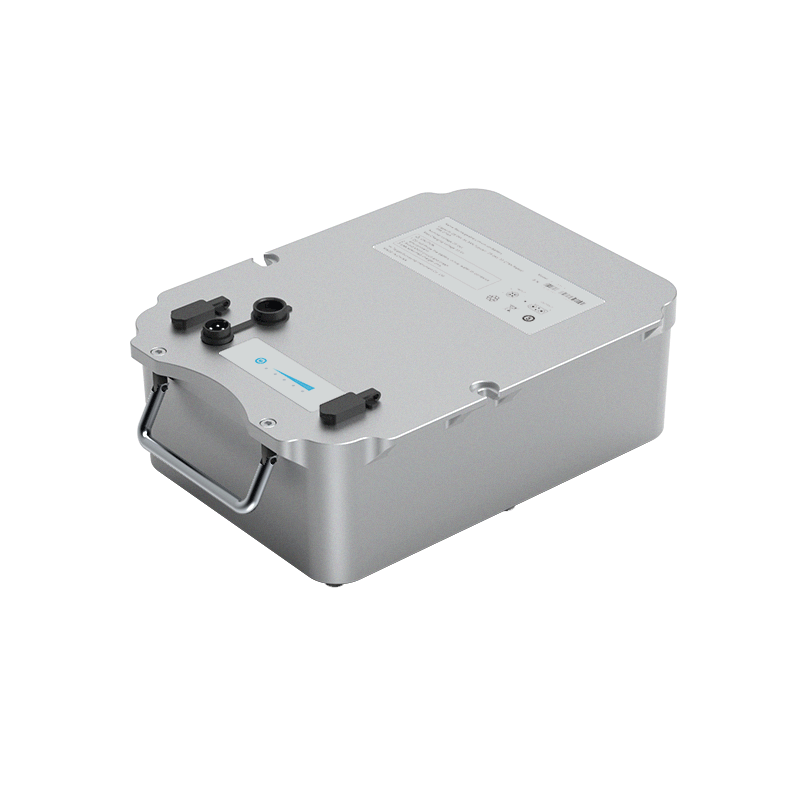

28.8V 34.3Ah intelligent lithium battery for surveying unmanned vessels
Suitable batteries for surveying and mapping, as well as unmanned ships
Product Number: 05BQ673-49
Rated voltage: 28.8V
Rated capacity: 34300mAh
Battery dimensions: 92.75 × 211 × 281 mm
Charging temperature: -20 to 60 degrees Celsius
Discharge temperature: -20 to 60 degrees Celsius
Application field: Surveying and mapping
Core Specifications of KRL 28.8V 34.3Ah Battery
Cell Configuration: Premium 21700 (8S7P)
Rated Voltage & Capacity: 28.8V / 34.3Ah
Continuous Discharge: 70.0A
Instantaneous Peak: 100A
Dimensions / Weight: 92.75 * 211 * 281 mm / Only 6 KG
Enclosure Material: High-Impact ABS + PC + Aluminum Face Panel
Project Number: 05BQ673-49
Cell model: INR21700-50GB/4900mAh/3.6V
Battery specifications: 21700 – 8S7P / 34.3Ah / 28.8V
Charging and discharging port form: split port
Rated voltage: 28.8V
Rated capacity: 34.3Ah
Charging current: ≤ 10.0A
Discharge current: 70.0A
Instantaneous discharge current: 100A
Discharge cut-off voltage: 20.8V
Internal resistance of the finished product: ≤ 60 mΩ
Battery weight: 6KG
Product dimensions: (92.75 ± 0.5) * (211 ± 0.3) * (281 ± 0.3) mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Storage temperature: -20 to 25 degrees Celsius
Battery housing: ABS + PC + aluminum face panel
Communication protocol: Can
Intelligent lithium battery protection: battery capacity calculation, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature over-temperature and under-temperature protection during charging and discharging, etc.
Application fields: Surveying and mapping, unmanned vessels
Battery Characteristics
Intelligent BMS: Utilizing high-precision measurement and protection chips along with advanced intelligent management technology, it provides users with precise power information and highly secure protection management.
Charge/discharge interface design: Charge and discharge do not affect each other, ensuring high safety performance and low failure rate.
IP67 waterproof and dustproof: The casing is sturdy and resilient, capable of effectively resisting impacts. It maintains a stable size and is not prone to deformation. It has a high level of waterproof and dustproof protection, is corrosion-resistant, is less affected by the environment, and provides customers with a wider range of application scenarios.
Engineered for High-Speed Marine Mapping
Surveying unmanned vessels require a delicate balance between massive power output and minimal payload weight. Driven by KRL Power’s advanced lithium technology, this intelligent USV battery pack integrates premium INR21700 cells to deliver a robust 70A continuous discharge and a 100A instantaneous peak. Weighing strictly under 6KG, it utilizes an innovative composite enclosure (ABS + PC + Aluminum Face Panel). This hybrid housing ensures excellent heat dissipation and impact resistance against marine waves, without burdening the surveying vessel’s buoyancy.
Uncompromising Stability Across Extreme Climates
Marine mapping operations cannot pause for unpredictable weather. KRL’s engineering team has optimized this 28.8V 34.3Ah battery to maintain an ultra-low internal resistance of ≤ 60 mΩ. This guarantees maximum energy conversion efficiency and minimal heat generation during extended missions. Designed for global deployment, the battery reliably executes surveying tasks in extreme climates, supporting discharge operations from freezing -20°C up to blistering 60°C environments.
Direct Factory Customization for Unmanned Systems
Standard batteries compromise the true potential of your autonomous fleet. As an industry-leading manufacturer, KRL Power provides end-to-end OEM and ODM services for autonomous marine developers. Whether your engineering blueprint requires custom split-port charging configurations, specific marine-grade watertight connectors, or a proprietary intelligent BMS with customized CAN bus communication, our facility will design, test, and manufacture the perfect power solution. Partner with KRL to secure factory-direct pricing and a fully integrated, reliable supply chain for your USV projects.
